Container Energy Storage Solutions
Commercial Energy Storage System
Megawatt level energy storage, quick installation
Container energy storage is one-stop large-scale energy storage solution
Modular design, easy to install
Support application scenarios of different voltage levels & different capacities
Support high-voltage systems of 1000V+ level

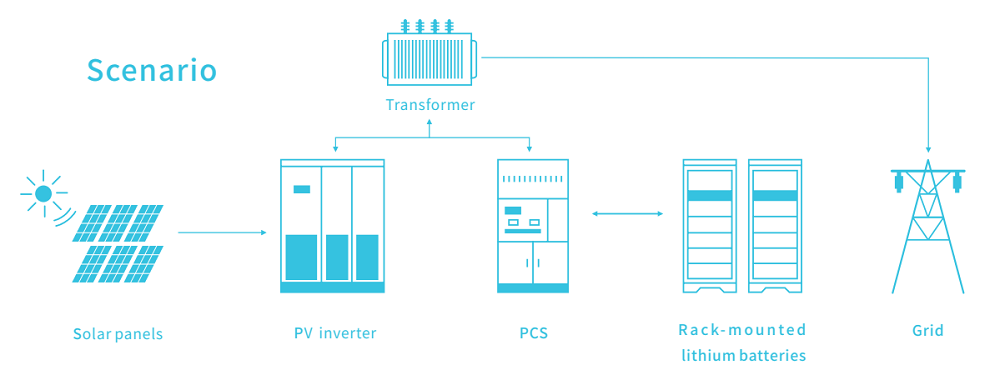

Applications: power station, micro power grid, grid frequency modulation, peak load shifting, backup power
| Specification | ||
| Items | 1.05MWh (20' HC) | 2.76MWh (40' HC) |
| Rated energy | 1057kWh | 2764.8kWh |
| Rated voltage | DC652.8V | DC768V |
| Voltage range | 571.2～744.6V | 648～876V |
| Rated capacity | 1620Ah | 3600Ah |
| Max.charge / discharge current | 810A | 900A |
| PCS / EMS | 500kW | |
| Communication | RS485 / CAN | |
| Cell type | LFP (LiFeO4) | |
| IP grade | IP54 | |
| Size (W*H*D) | 6058*2438*2896mm | 12192*2438*2896mm |
| Certificates | CE / IEC62619 | |
