Outdoor Cabinet Energy Storage Solutions
Commercial Energy Storage System
Flexible arrangement, convenient installation and maintenance

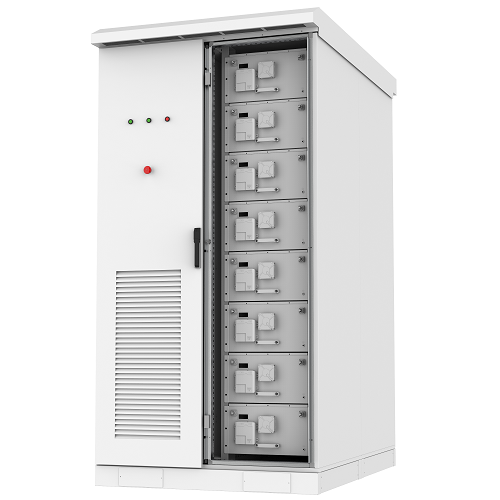

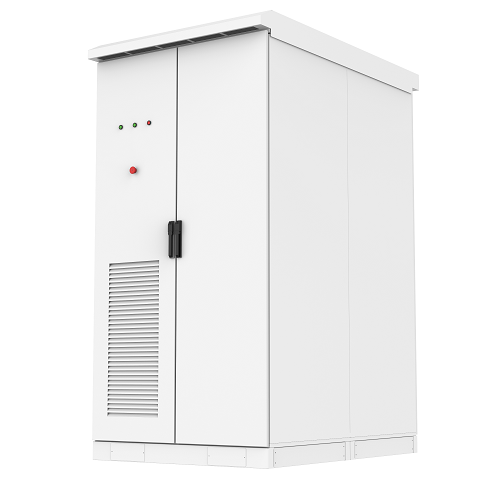

Outdoor cabinet is a highly integrated energy storage system
Flexible arrangement, convenient installation and maintenance
Support remote online upgrade to achieve unattended
Multiple devices in parallel to form a small & medium energy storage system easily
Meet the needs of peak load shifting, dynamic capacity increase, demand management, backup power, etc
Compatible with user-side and power-side energy storage applications
| Specification | |
| Items | 230kWh |
| Rated energy | 230.4kWh |
| Rated voltage | DC768V |
| Voltage range | 648～876V |
| Rated capacity | 300Ah |
| Max.charge / discharge current | 150A |
| PCS / EMS | 70 /140kW |
| Cell type | LFP (LiFeO4) |
| IP grade | IP54 |
| Size (W*H*D) | 1165*2300*1725mm |
| Battery certificates | CE / IEC62619 |
